Mastering Database Design: A Beginner’s Guide from ERD to Relational Algebra

Introduction

Ever wondered how databases power everything from social media platforms to university portals and banking apps? Behind every well-structured database is a solid design, one that ensures data is organized, consistent, and easy to retrieve.

If you’ve ever struggled to understand how databases are structured, don’t worry, you’re not alone! In this blog, we’re going to break down four essential topics that will take you from database design basics to advanced querying:

⭐ Entity-Relationship Diagrams (ERD) – The blueprint of any database.
⭐ The Relational Model & Schema Design – How data is structured into tables.
⭐ Translating ERDs into Relational Schemas – Converting designs into working databases.
⭐ Relational Algebra – The math behind database queries.

By the end, you’ll not only understand database design but also be able to create and manipulate databases like a pro! 🦾

---

What is an ERD, and Why Should You Care?

Before we start building a database, we need a plan. That’s where Entity-Relationship Diagrams (ERDs) come in.

Think of an ERD as a map of your database. It helps you visualize how data is stored and connected, so you don’t end up with a tangled mess of tables later.

🔹 The Three Building Blocks of an ERD

• Entities → The “things” you want to store data about (e.g., Students, Courses, Books).
• Attributes → The details about each entity (e.g., a Student has a Name, Age, Email).
• Relationships → How entities are connected (e.g., A Student enrolls in a Course).

🔹 Attributes: The DNA of Entities

Attributes tell us more about an entity. They come in different flavors:

• Simple vs. Composite → “Age” is simple, but “Full Name” (First Name, Last Name) is composite.
• Single-Valued vs. Multi-Valued → “Email” is single-valued, but “Phone Numbers” can have multiple values.
• Derived → “Age” can be calculated from “Date of Birth.”

🔹 How Relationships Work (a.k.a. Cardinality)

• One-to-One (1:1) → One person can have only one passport.
• One-to-Many (1:M) → A teacher can teach many students, but each student has only one teacher.
• Many-to-Many (M:N) → A student can take many courses, and a course can have many students.

To make this work in a database, we use keys:

• Primary Key (PK) → A unique ID for each record (e.g., StudentID).
• Foreign Key (FK) → A reference to another table (e.g., StudentID in an Enrollment table).

---

Turning ERDs into Tables (The Relational Model)

Once we have our ERD, it’s time to turn it into actual database tables. This is where we enter the relational model, which organizes data into tables (relations).

🔹 Key Concepts of the Relational Model

• Tables (Relations) → Think of these as spreadsheets storing related data.
• Rows (Tuples) → Each row is a single record (e.g., one student).
• Columns (Attributes) → Each column stores a specific type of data (e.g., Name, Age).
• Schema → The blueprint of a table, defining what data it holds.

🔹 Keys: The Glue That Holds Data Together

• Superkey → A set of attributes that uniquely identify a row.
• Candidate Key → A minimal superkey with no unnecessary attributes.
• Primary Key (PK) → The main unique identifier for each row.
• Foreign Key (FK) → Connects one table to another.

For example, in a university database:

• StudentID is the Primary Key in the Student table.
• CourseID is the Primary Key in the Course table.
• In the Enrollment table, both StudentID and CourseID are Foreign Keys linking the tables together.

---

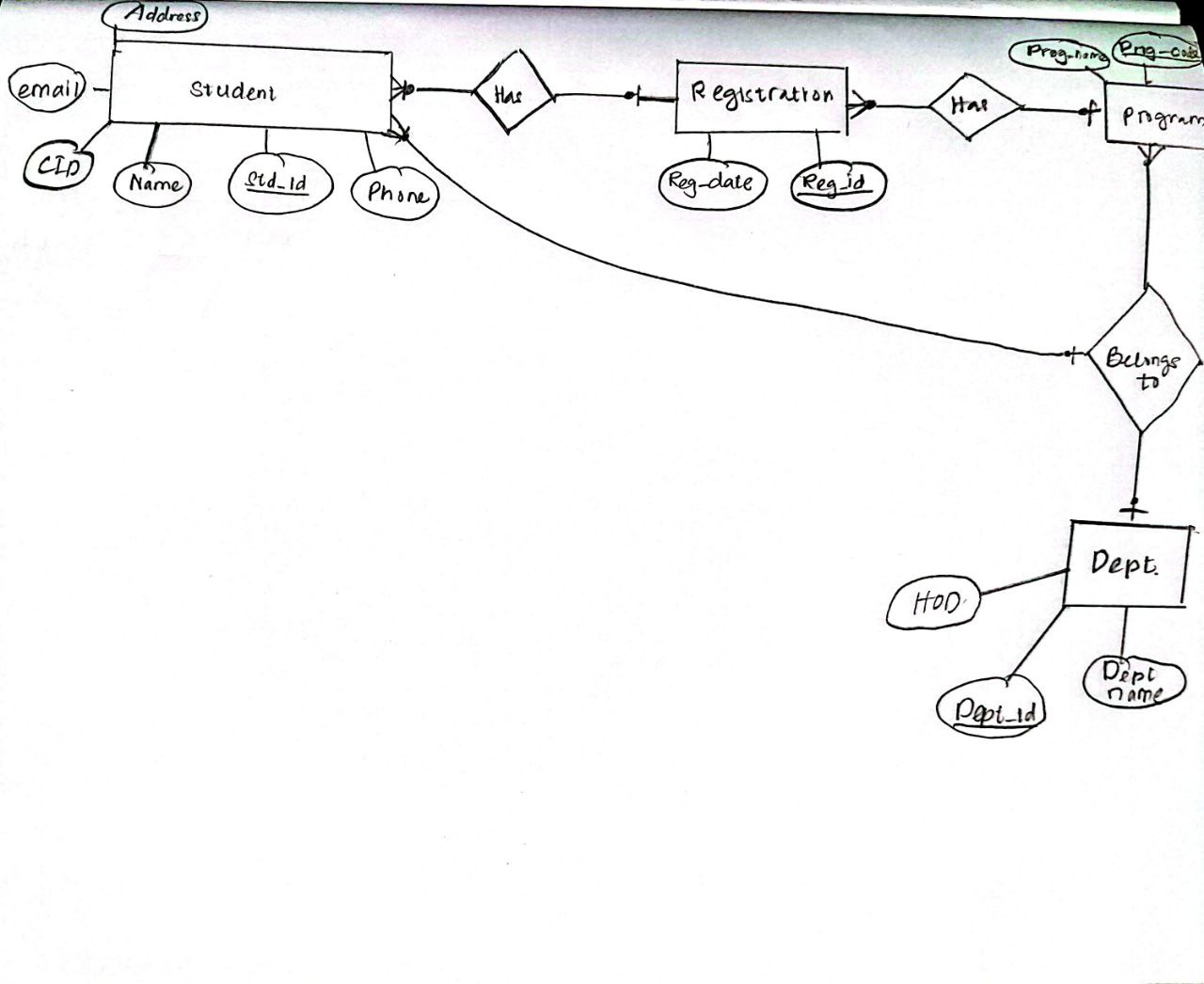

Fig.1. the Entity Relationship Data Model for student registration.

Converting an ERD into a Relational Schema

🔹 Steps to Convert an ERD into a Relational Schema

1. Create a table for each entity.
2. Convert attributes into columns.
3. Handle multi-valued attributes by creating a separate table.
4. Convert relationships into foreign keys based on cardinality.
5. Handle special cases like specialization, generalization, and aggregation.

📍 Example:

CREATE TABLE Student (
    StudentID INT PRIMARY KEY,
    Name VARCHAR(50),
    Age INT
);

CREATE TABLE Enrollment (
    StudentID INT,
    CourseID INT,
    PRIMARY KEY (StudentID, CourseID),
    FOREIGN KEY (StudentID) REFERENCES Student(StudentID),
    FOREIGN KEY (CourseID) REFERENCES Course(CourseID)
);

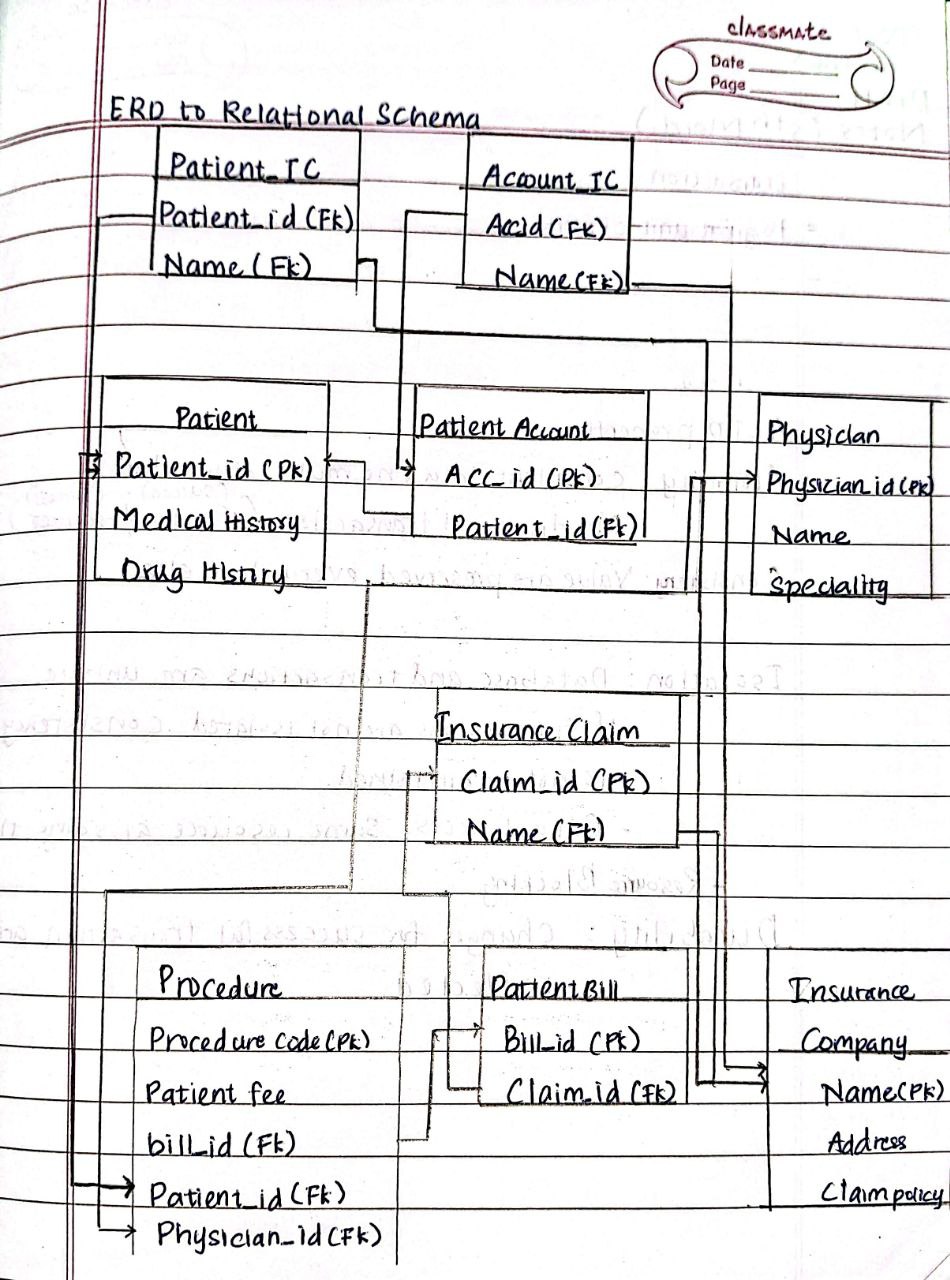

Fig.2. ERD to Relational schema.

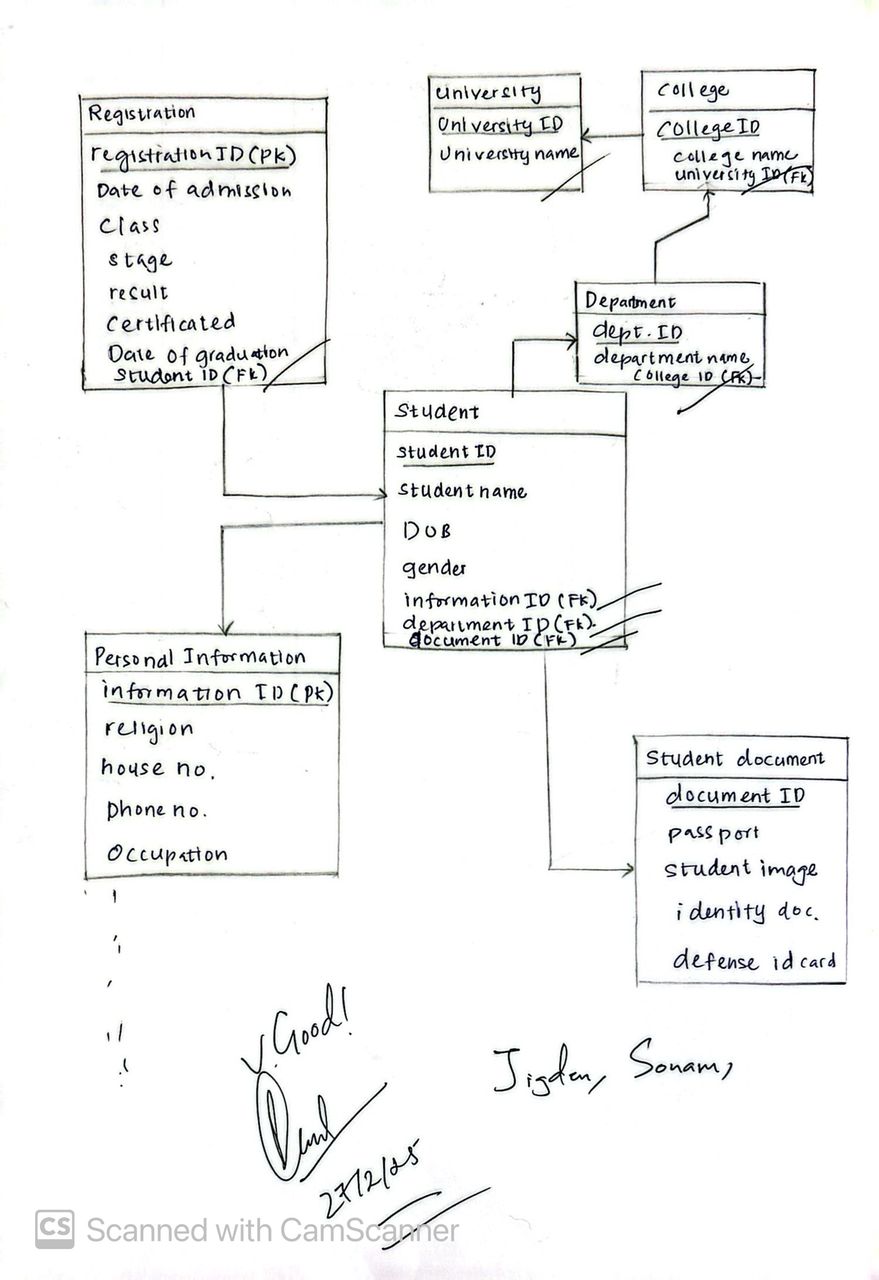

Fig.3. ERD to Relational schema.

---

Relational Algebra (The Math Behind Databases)

Relational algebra is the theoretical foundation of database queries. It’s like SQL, but more abstract. It is divided into two major operstions, Unary and Binary operations.

🔹 Common Relational Algebra Operations

• Selection (σ) → Filters rows based on conditions.
• Projection (π) → Selects specific columns.
• Union (∪) → Combines results from two tables.
• Join (⋈) → Combines rows from two tables based on a common attribute.
• Cartesian product(x) → Concatenates the tuples from both input relations.
• Difference → Generate a relation that contains only the tuples that appear in the first and not the second of the input relations.

📍 Example:

SELECT * FROM Student WHERE StudentNo = "12345";

---

Conclusion: Why This Matters

A well-structured database:
⭐ Avoids redundant data.
⭐ Ensures fast and efficient queries.
⭐ Makes data easy to manage and update.

If you master ERDs, relational models, schema design, and relational algebra, you’ll be able to design and manage powerful databases that scale efficiently.

Hope this piece of work as a good read! See you again in the next blog! 😒
