Lesson 9 Deep Dive: Joins, Views, Constraints & Custom Types in SQL

April 10, 2025

🧠 Lesson 9: A Deep Dive into Advanced SQL

This week’s database systems class was particularly insightful. We dove into join expressions, views, integrity constraints, data types, schemas, domains, and user-defined types. I’m going to summarize the key takeaways from what I learned in Lesson 9.

🔗 Join Expressions

Joins are a way to combine rows from two or more tables based on a related column between them. We explored several types of joins:

🌿 Natural Join

SELECT Orders.OrderID, Customers.CustomerName, Orders.OrderDate
FROM Orders
NATURAL JOIN Customers;

Combines rows based on columns with the same names and compatible data types.
No need to specify the join condition.

🔄 Inner Join

SELECT Orders.OrderID, Customers.CustomerName, Orders.OrderDate
FROM Orders
INNER JOIN Customers ON Orders.CustomerID = Customers.CustomerID;

Combines rows with matching values in both tables.

🌍 Outer Join

-- LEFT OUTER JOIN
SELECT *
FROM Patient
LEFT JOIN Appointment ON Patient.PatientID = Appointment.PatientID;

-- FULL OUTER JOIN
SELECT *
FROM Patient
FULL OUTER JOIN Appointment ON Patient.PatientID = Appointment.PatientID;

LEFT JOIN: All records from the left table and matched ones from the right.
RIGHT JOIN: All records from the right table and matched ones from the left.
FULL OUTER JOIN: All matched and unmatched records from both sides.

🪟 Views in SQL

A view is a virtual table based on a SQL query. It doesn’t store data but derives it from the base table. Views help simplify complex queries, enhance security, and abstract data access.

Creating a View

CREATE VIEW swefaculty AS
SELECT ID, name, deptname
FROM instructor
WHERE deptname = 'swe';

📦 Materialized Views

Materialized views store query results physically and are refreshed periodically.

Creating a Materialized View

CREATE MATERIALIZED VIEW top_instructors AS
SELECT name, deptname, salary
FROM instructor
WHERE salary > 50000;

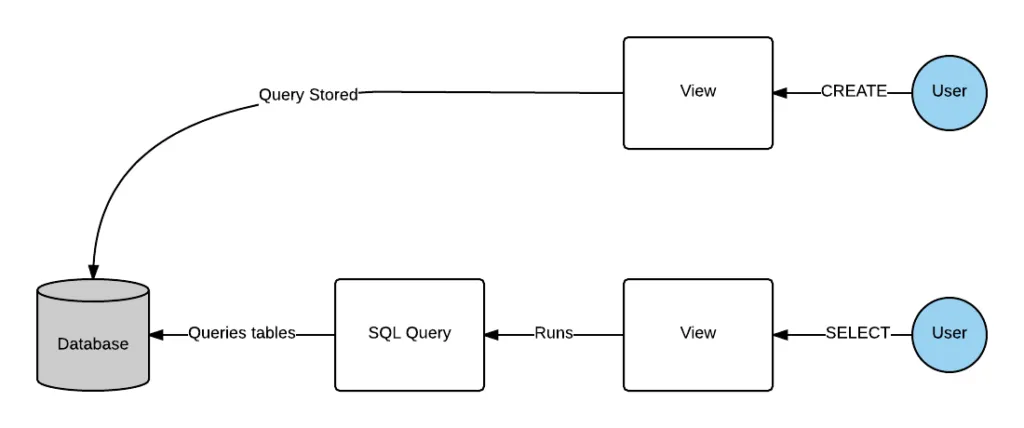

Views

Fig1.Views

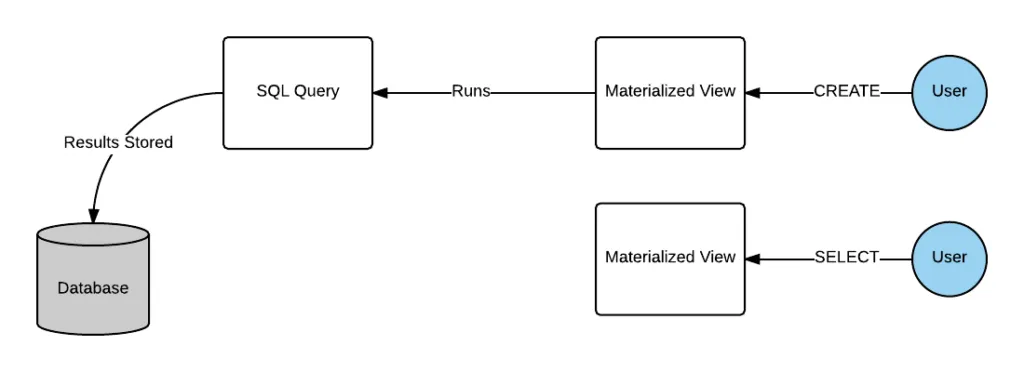

Materialized views

Fig2.Materialized Views

Refreshing and Indexing

REFRESH MATERIALIZED VIEW top_instructors;

CREATE INDEX idx_salary ON top_instructors(salary);

✍️ Updatable Views

Not all views are updatable. A view is updatable if:

It contains only one base relation.
No aggregates, GROUP BY, or HAVING clauses.
Only selects simple attributes of the base relation.

🛡️ Integrity Constraints

SQL allows the definition of integrity constraints to maintain database accuracy and consistency:

Constraint	Meaning
Entity Integrity	Primary key must not be null.
Domain Constraints	Values must follow valid domain rules (e.g., age must be > 0).
Referential Integrity	Foreign key values must exist in the referenced table.
Key Constraint	Each tuple must be unique for a given key.

📚 Data Types and Schemas

SQL provides a variety of data types and schema features to manage complex data structures.

Temporal Data Types

Type	Description
`date`	Stores only date.
`time`	Stores time with nanosecond precision.
`datetime2`	Stores date and time.
`datetimeoffset`	Includes timezone offset.
`smalldatetime`	Less precise and smaller range.

🔁 Type Conversion

SELECT CAST(ID AS numeric(5)) AS instid
FROM instructor
ORDER BY instid;

CAST is used to convert data types.

🔒 Default Values

CREATE TABLE student (
  ID VARCHAR(5),
  name VARCHAR(20) NOT NULL,
  deptname VARCHAR(20),
  totcred NUMERIC(3,0) DEFAULT 0,
  PRIMARY KEY (ID)
);

You can assign default values to attributes.

🧱 Working with Large Objects (LOBs)

For storing media or large content, SQL supports large object types.

Example

bookReview CLOB(10KB)
image BLOB(10MB)
movie BLOB(2GB)

PostgreSQL Specific LOB Types

Type	Max Size	Use Case
BYTEA	< 1MB	Small binary files or images
TEXT	< 1GB	Articles, paragraphs
JSONB	< 1GB	Structured JSON with indexing
XML	< 1GB	Markup data
Large Object	< 4TB	Videos, audio, etc.

🧬 Domains and User-Defined Types

SQL supports custom types and reusable rules.

💡 Distinct Type

CREATE TYPE Dollars AS NUMERIC(12,2) FINAL;

🧠 Domain

A domain defines a new type with constraints:

CREATE DOMAIN phone_type AS VARCHAR(10)
CHECK (VALUE ~ '^\d{10}$');

🔑 Auto-Increment Identifiers

SQL provides serial types for automatic numbering.

CREATE TABLE MedicalProcedure (
  ProcedureID SERIAL PRIMARY KEY,
  ProcedureName VARCHAR(100),
  Description TEXT,
  Cost DECIMAL(10, 2)
);

Type	Size	Range
SMALLSERIAL	2 B	1 to 32,767
SERIAL	4 B	1 to 2.1 billion
BIGSERIAL	8 B	1 to 9 quintillion

🧪 Table Cloning

We can create a new table by cloning the structure of an existing one:

CREATE TABLE temp_instructor (LIKE instructor INCLUDING ALL);

🎯 Final Thoughts

Lesson 9 was all about refining SQL knowledge,understanding powerful constructs like joins, views, constraints, domains, and user-defined types. These concepts allow us to work with SQL in more efficient, secure, and scalable ways. I’m beginning to appreciate how structured and robust relational databases can be when implemented thoughtfully.

✅ Reflections & What I Want to Explore Next

Experimenting with Materialized Views for performance testing.
Creating PostgreSQL domains for consistent validation across tables.
Applying large object types to real-world media applications.

Thanks for reading! More to come in the next blog ✨
